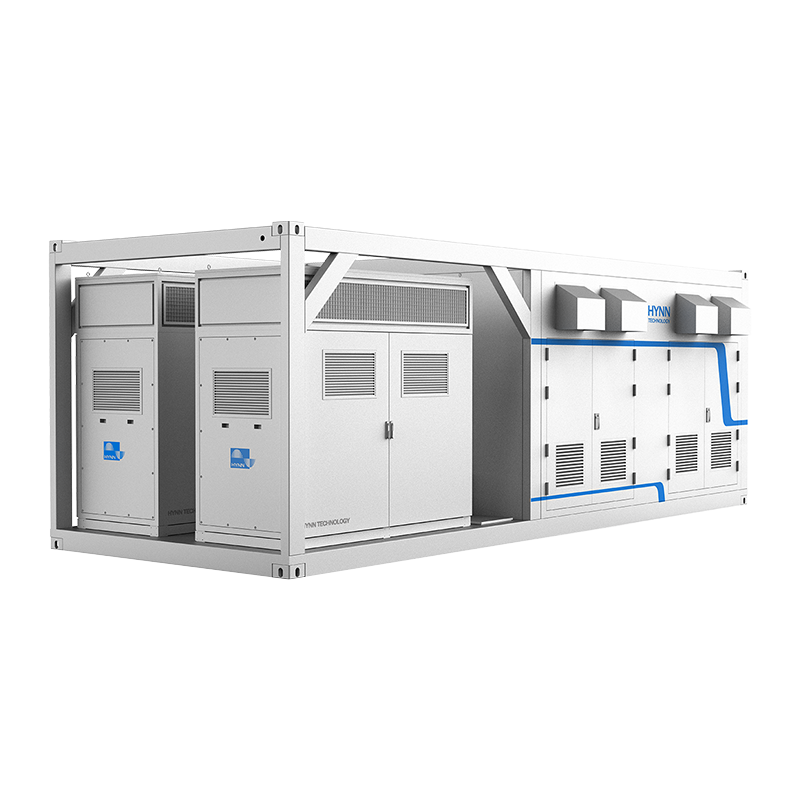

Integrated Inverter Step-Up Transformer System

Model: IBC5000-1500IS-2/4CH

Developed on the same platform as grid-level protection systems, enabling coordinated protection across EMS, PMS, PCS, and BMS.

Supports multi-layer system protection to address poor coordination and fault isolation challenges common in the industry.

Integrated Inverter Step-Up Transformer System

Model: IBC5000-1500IS-2/4CH

Developed on the same platform as grid-level protection systems, enabling coordinated protection across EMS, PMS, PCS, and BMS.

Supports multi-layer system protection to address poor coordination and fault isolation challenges common in the industry.

產品特點

Product Features
Product Features

規格參數

Parameters
Parameters
  • Max DC power :
    5000/6250/6900kW
  • DC voltage range :
    1000~1500V
  • DC input channels :
    2/4
  • Rated DC Current :
    5000/6250/6900A
  • AC voltage range :
    586~759V
  • Maximum AC Power :
    5500/6875/7590kVA
  • Rated AC Current :
    4184/5230/5774A
  • Rated AC voltage :
    690V
  • Grid frequency range :
    50/60Hz
  • Output current (THD) :
    <3% (Rated power)
  • Transformer type :
    Dry/Oil
  • Voltage transformation ratio :
    0.69kV/35kV
  • Maximum Efficiency :
    98.5%
  • Protection level :
    IP 54
  • Allowable environment temperature :
    -35℃~+60℃
